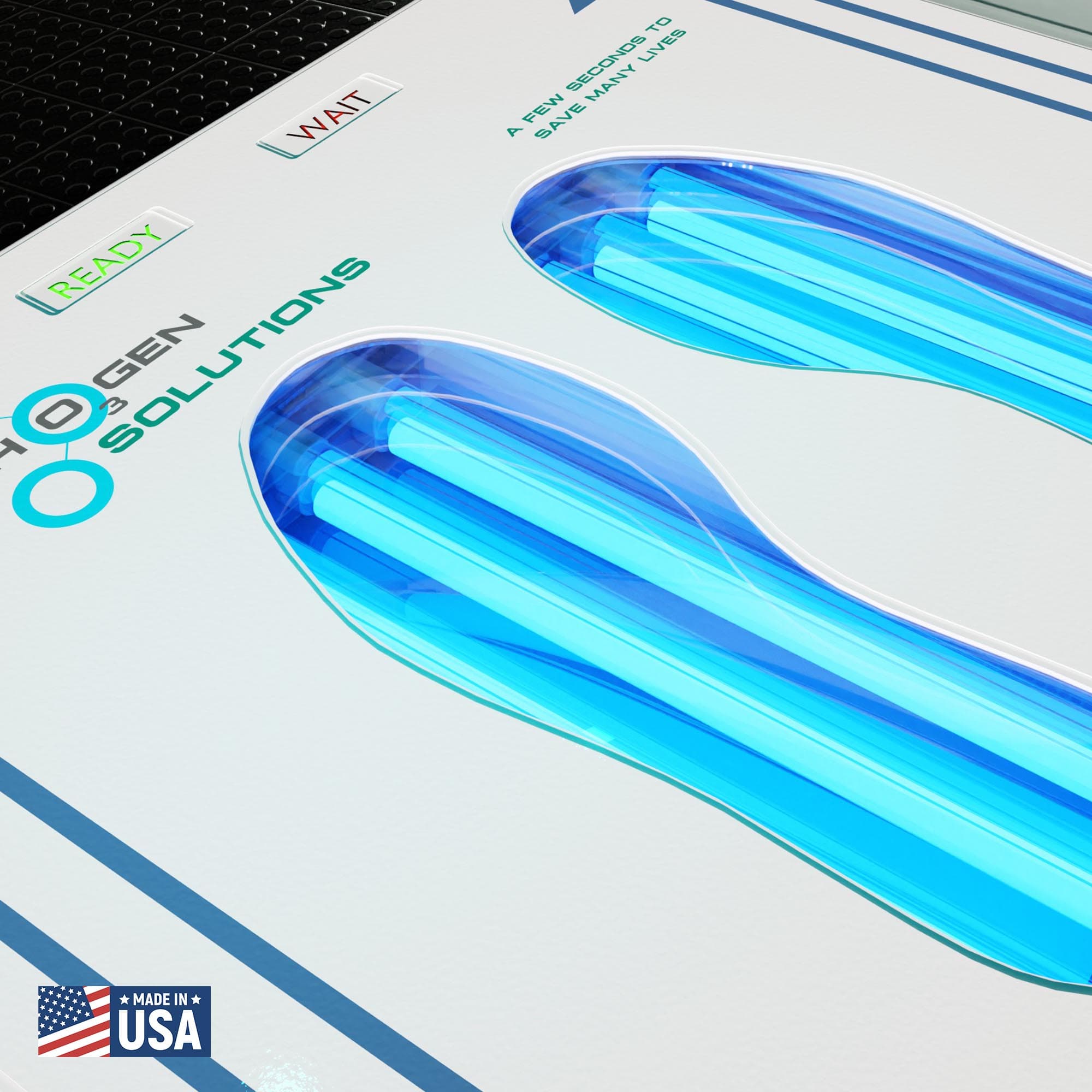

UVZone Shoe Sanitizing Station
A device that uses UV-C and ozone to sanitize shoe soles
- Factory-set treatment cycle of 6, 8, or 10 seconds
- Automatic activation with pressure sensors
- Low-profile design for easy integration
- Made in USA with full technical support
- Visual and audio cycle completion indicators

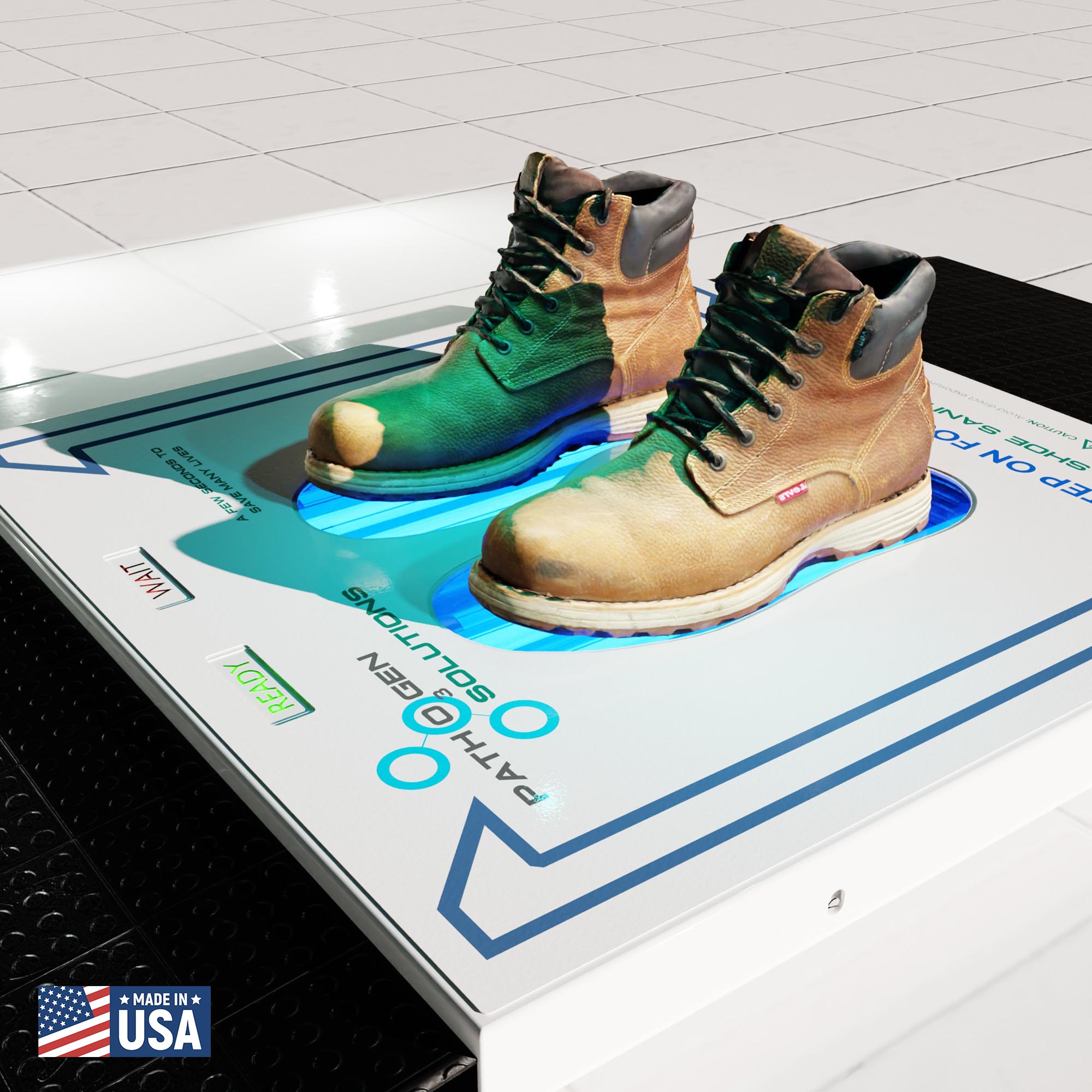

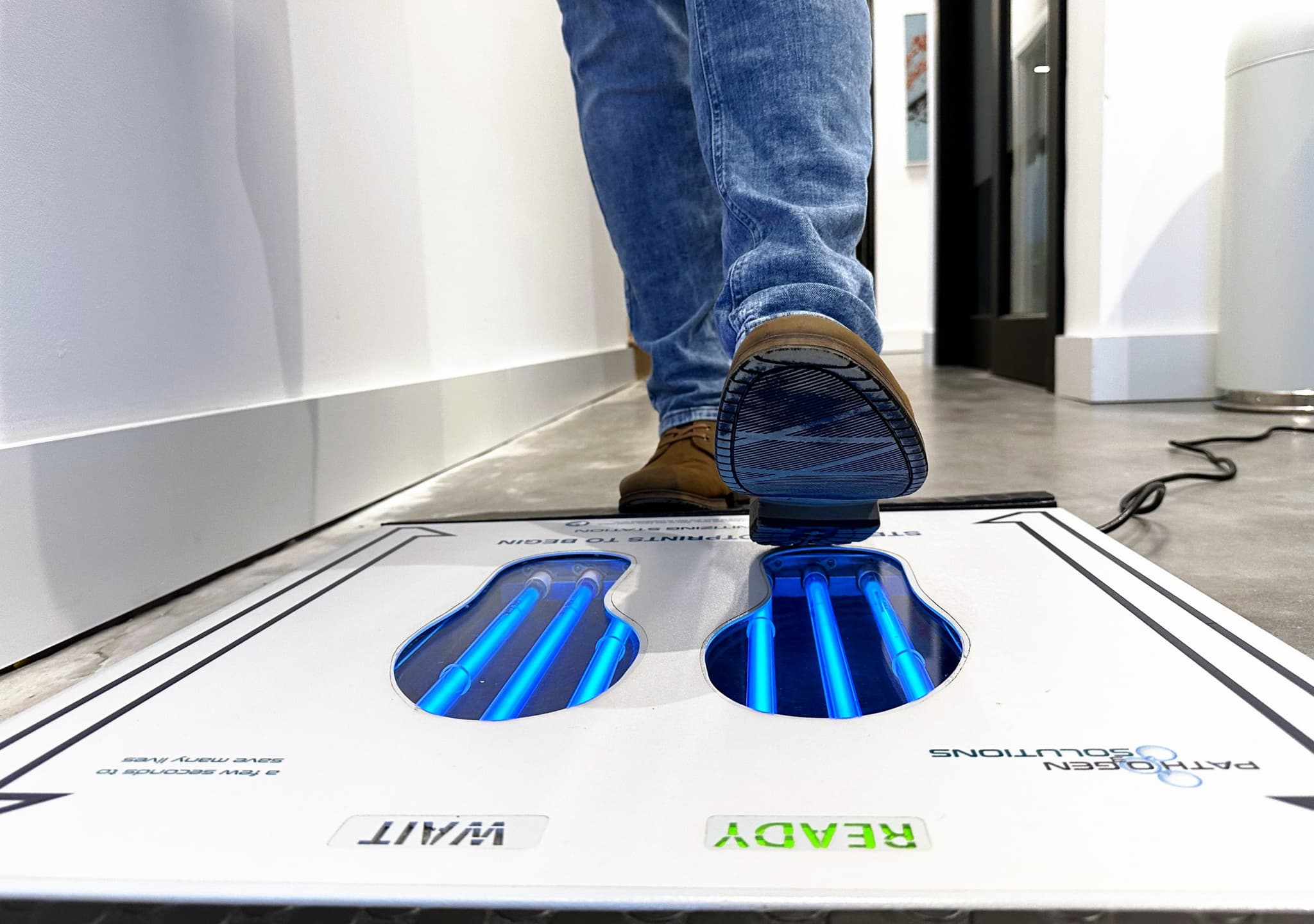

Step On
Simply step on the unit
Pressure sensors detect footwear and activate the system automatically
UV-C + Ozone Treatment
A device that uses UV-C and ozone to sanitize shoe soles
Walk Forward
Your shoes have been treated
Technical Specifications
Complete product specifications and performance data
Physical Dimensions
- Overall Dimensions
- 24" × 24" × 2"h
- Metric
- 61 × 61 × 5cm
- Weight
- 33 lbs / 14.96 kg
- Weight Capacity
- Up to 400 lbs (181 kg)
Electrical Requirements
- Power Input
- 120-240VAC, 50-60Hz
- Current
- 1.2A
- Plug Type
- Standard NEMA 5-15
- Cord Length
- 10 feet (3 m)
Performance Specifications
- Cycle Time
- 6, 8, or 10 seconds
- UV-C Wavelength
- 254 nm
- Lamp Life
- 10,000+ hours to 80% output
- Activation
- Automatic weight sensor
Product Details
- Manufacturing
- Made in USA
- Warranty
- 1 Year Parts & Labor
- Technology
- Patented Dual-Action
- Operation
- Fully Automatic
Need Detailed Specifications?
Contact us for complete technical specification sheets and installation guides
Third-Party Lab Verified Efficacy
UVZone® Technology has been rigorously tested by NSF International, CREM CO. Labs and Microchem Labs to verify its efficacy.
Selected results shown. Full laboratory reports are available upon request. Testing conducted from 2019 through 2022.
*Efficacy claims based on independent laboratory testing. Results may vary based on application conditions. Patho3Gen technology is designed for environmental surface sanitation and is not intended to diagnose, treat, cure, or prevent any disease. Always follow manufacturer guidelines and applicable regulations.
What facility leaders report
Verbatim excerpts from statements shared by facilities using UVZone shoe sanitizing stations.
“To help improve our compliance with USP 797 and minimize the risk of pathogens contaminating our Clean room, we added to our department's action plan your PathO3Gen Solutions Shoe Sanitizing Station.”
Excerpt from a longer statement provided by the facility.
“We have recently added the UVZone® Shoe Sanitizing Station to our transitional zone, utilizing this innovative technology to further enhance our dedication to quality and safety. We are very proud to go the extra mile to ensure our customers receive the best product possible.”
- Installation and setup
- Ongoing maintenance and support
- Lamp replacements and service
- Scalable across multiple facilities
Warranty1 Year Parts & LaborHelp Desk
